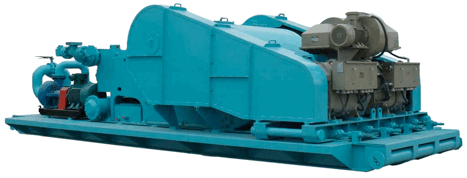

Basic Parameter Of F1300/F1600 Electric Motor
Pump Unit |
||||||||
|
Mud pump |
Power Unit |
Transmission Mode |
Supercharging System |
|||||
|
Pump Model |
F1300 |
F1600 |
Motor Model |
YZ08/YZ08A |
Belt Drive |
Supercharging Pump Model |
SB6×8FJ-12.5 |
|
|
Rated input power |
969KW (969HP) |
1193KW （1600HP） |
Rated Power |
800KW （1072HP） |
OD. Big Pulley |
φ1018mm |
Supercharging pump power |
75HP |
|
Max. Liner Size |
177.8mm（7inch） |
Rated Speed |
971 r/min |
OD. Small Pulley |
φ530mm |
discharge head |
32m (105’） |
|
|
Max. Pressure |
35Mpa （5000psi） |
Rated Voltage |
750V |
Pulley Ratio |
1.922 |
Displacement |
240m3/h (63401GAL/H) |
|
|
Stroke |
304.8mm（12inch） |
Rated Current |
1150A |
Group V-Belt |
4X5ZV25-8000 |
Motor Power |
55KW |
|
|
Rated Stroke/Min. |
120 stroke/minute |
|
|
|
|
Motor Speed |
1750
r/min |
|
|
Gear Ratio |
4.206：1 |
|
|
|
|
Ex-Proof Grade |
dⅡBT4 |
|
|

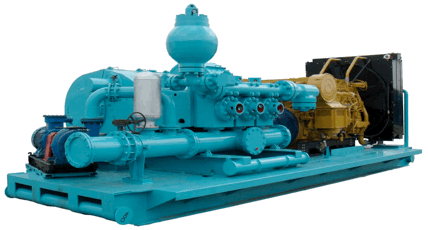

Basic Parameter Of F1000 Pump Unitization |
|||||||
|
Mud pump |
Power Unit |
Transmission System |
Supercharging System |
||||
|
Pump Model |
F1000 |
Model of Diesel Engine |
CAT3512 |
Belt Drive |
Supercharging Model |
SB6×8FJ-12.5 |
|
|
Rated Input Power |
746KW（1000HP） |
Rated power |
1250HP |
OD. Big Pulley |
φ1016mm |
Supercharging Power |
75HP |
|
Max. Liner Size |
170mm （6 3/4’’） |
Rated Speed |
1200 r/min |
OD. Small Pulley |
φ500mm |
discharge head |
32m (105’） |
|
Max. Pressure |
35Mpa （5000psi） |
Input Shaft Rotate Direction |
Anti-Clockwise (Seen from Output shaft) |
Ratio |
2.032:1 |
Displacement |
240m3/h (63401GAL/H) |
|
Stroke |
254mm （10’’） |
Cooling Model |
Pressure Water Cooling |
Group V-Belt |
3X4ZV25J-5380 |
Motor Power |
55KW |
|
Rated Stroke/Min. |
140 Stroke/Min. |
Actuation Model |
Air Actuation |
|
|
Motor Speed |
1750
r/min |
|
Gear Ratio |
4.207:1 |
|
|
|
|
Ex-Proof Grade |
dⅡBT4 |
|

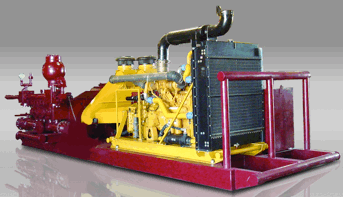

Basic Parameter Of F800 Pump Unitization |
|||||||
|
Mud pump |
Power Unit |
Transmission System |
Supercharging System |
||||
|
Pump Model |
F800 |
Model of Diesel Engine |
CAT3508C |
Belt Drive |
Supercharging Model |
SB6×8FJ-12.5 |
|
|
Rated Input Power |
596KW（800HP） |
Rated power |
900HP |
OD. Big Pulley |
φ956mm |
Supercharging Power |
75HP |
|
Max. Liner Size |
170mm （6 3/4’’） |
Rated Speed |
1200 r/min |
OD. Small Pulley |
φ500mm |
discharge head |
32m (105’） |
|
Max. Pressure |
35Mpa （5000psi） |
Input Shaft Rotate Direction |
Anti-Clockwise (Seen from Output shaft) |
Ratio |
1.912:1 |
Displacement |
240m3/h (63401GAL/H) |
|
Stroke |
229mm （9’’） |
Cooling Model |
Pressure Water Cooling |
Group V-Belt |
3X4ZV25J-5380 |
Motor Power |
55KW |
|
Rated Stroke/Min. |
150 Stroke/Min. |
Actuation Model |
Air Actuation |
|
|
Motor Speed |
1750 r/min |
|
Gear Ratio |
4.185:1 |
|
|
|
|
Ex-Proof Grade |
dⅡBT4 |
